Hexitronics EdgePLC-16

Product Images

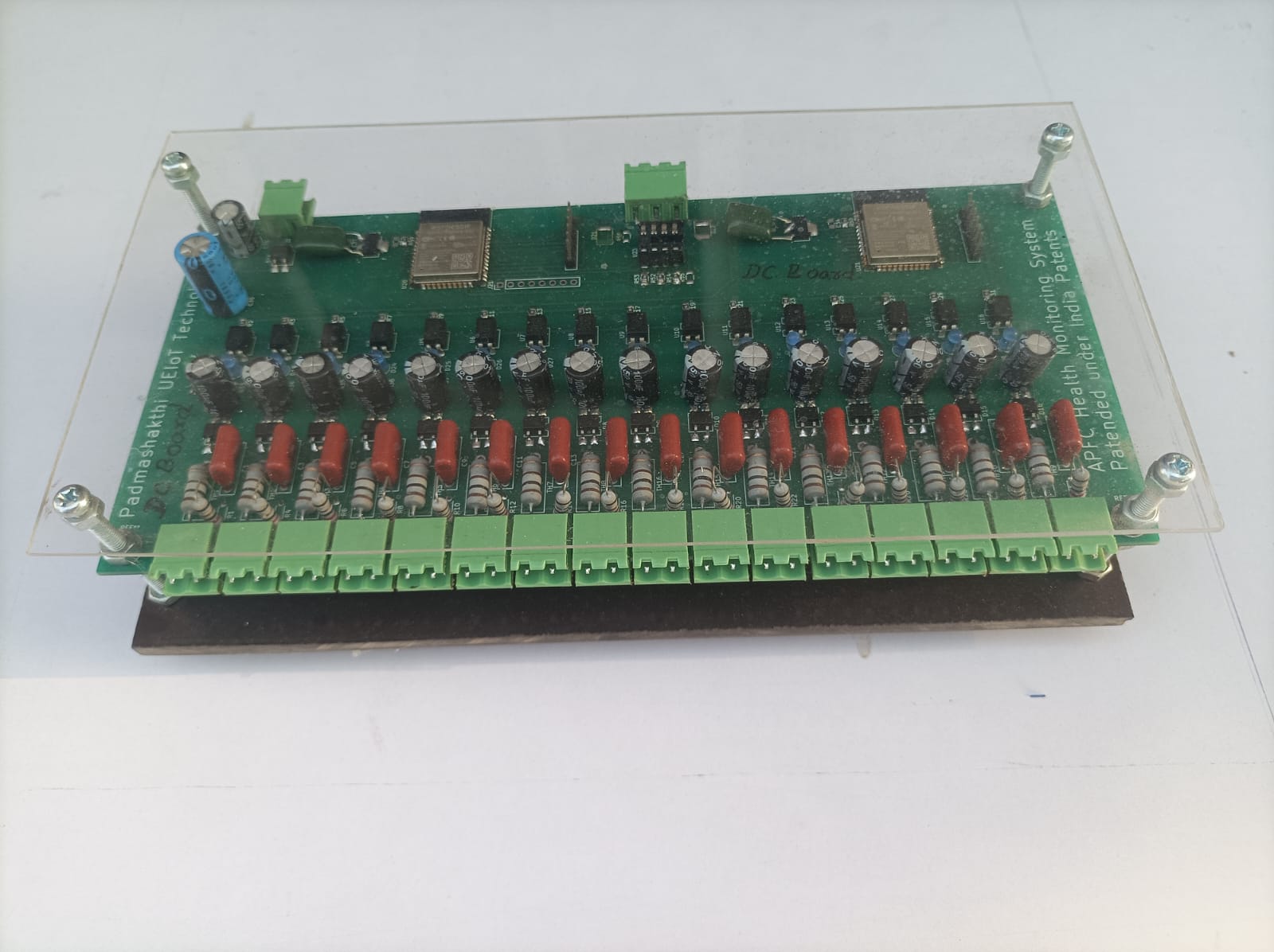

Front View

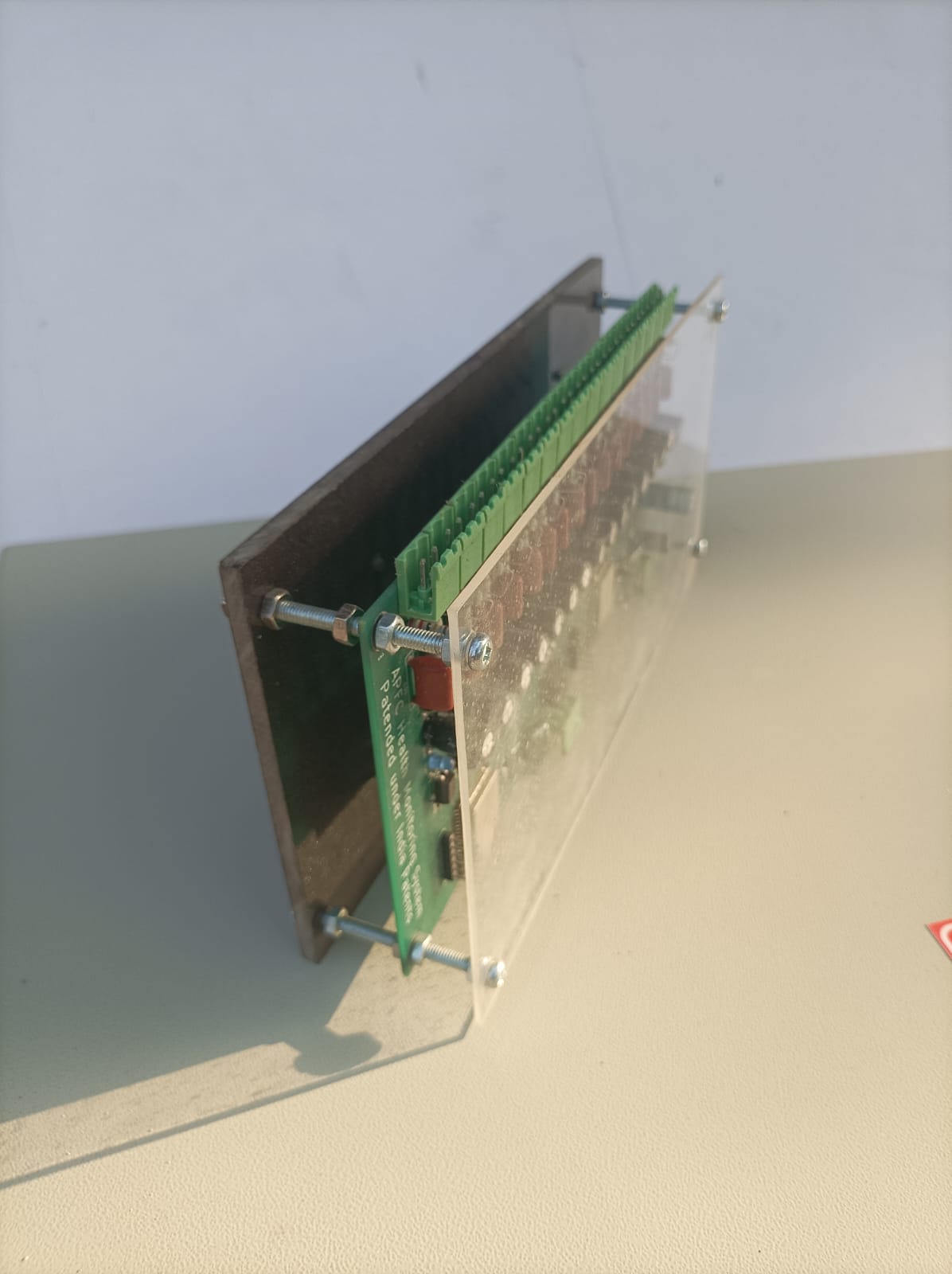

Side View

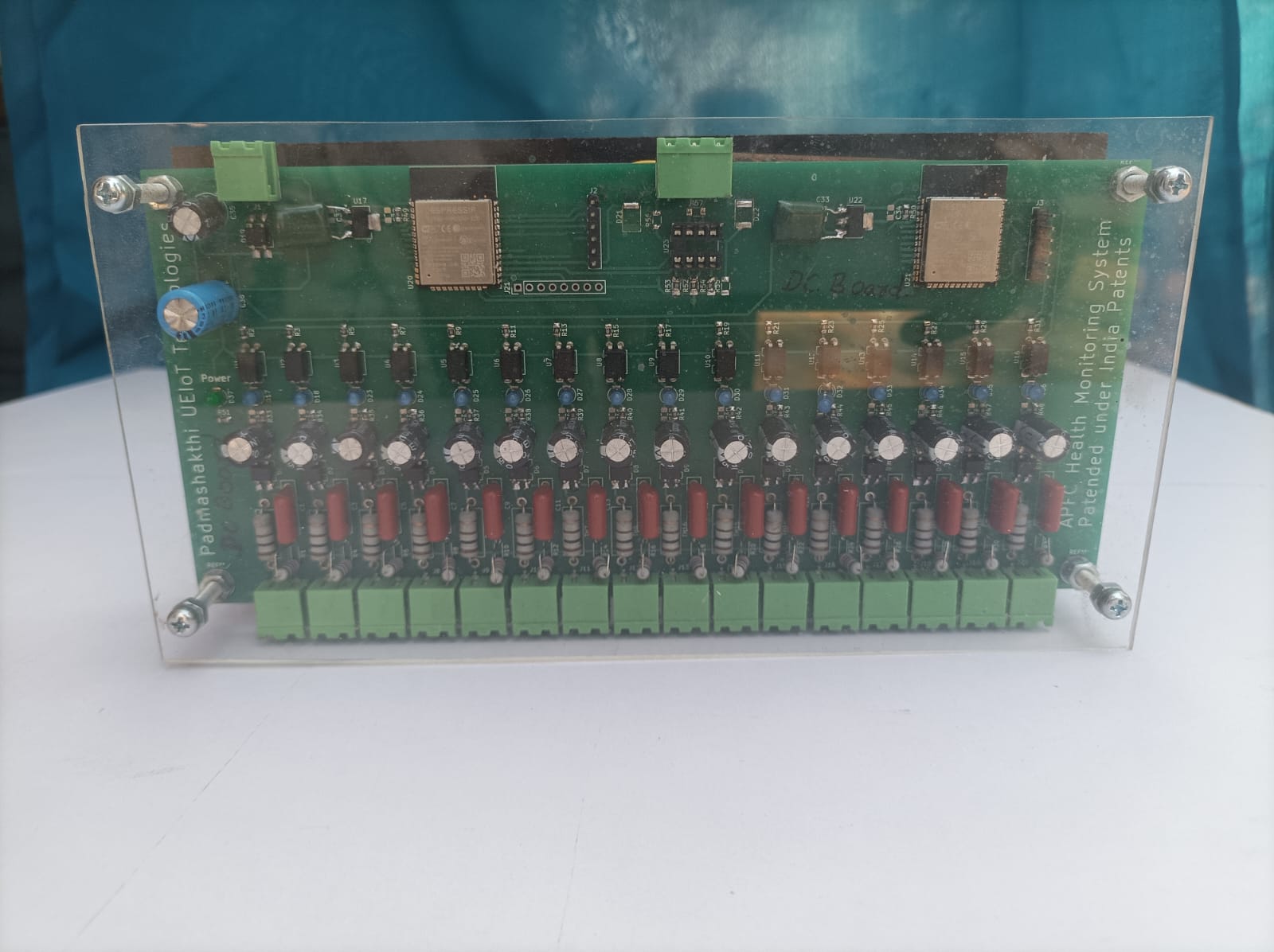

PCB View

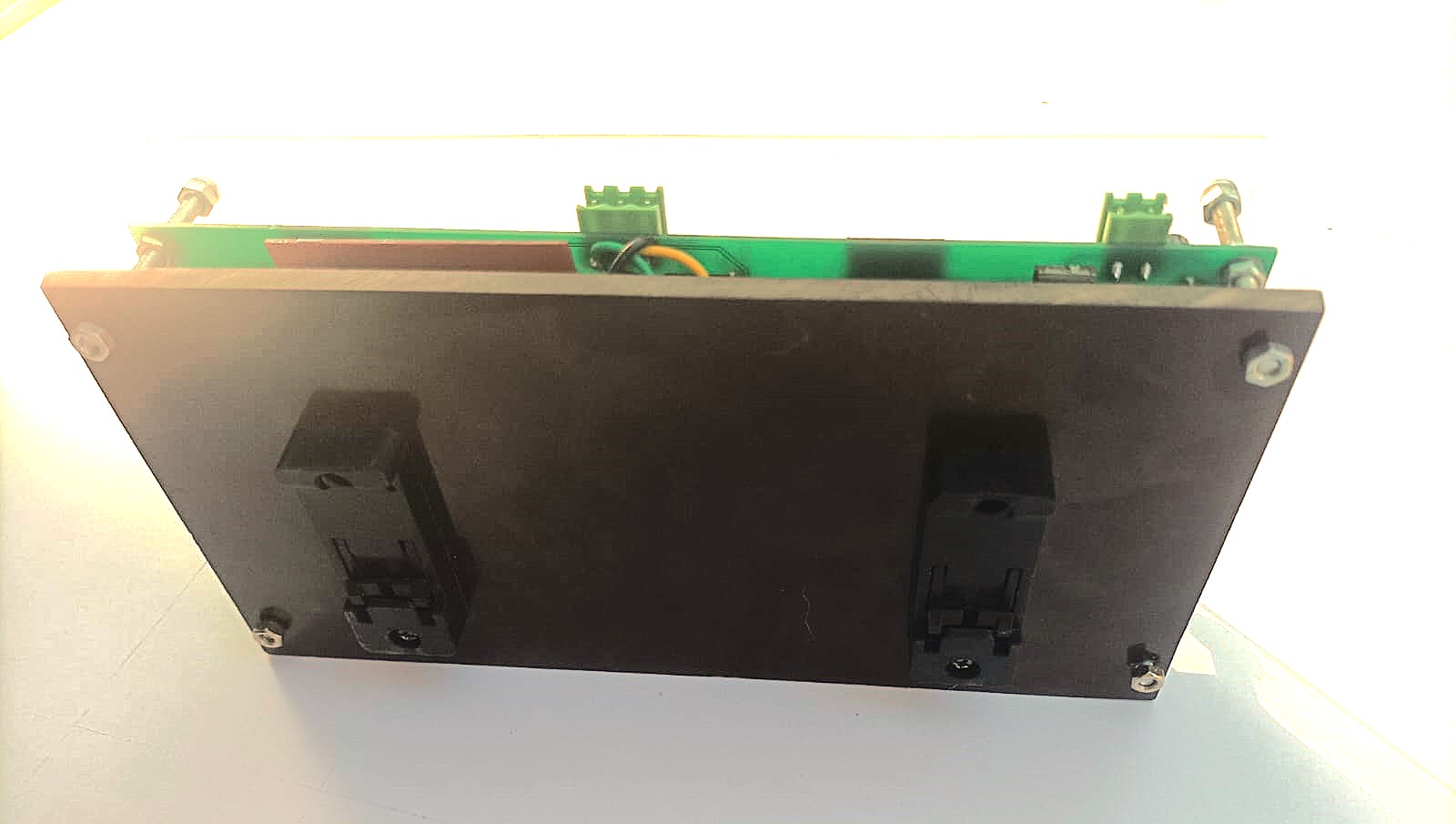

Back View

Product Overview

The controller is designed and manufactured in India by Hexitronics Automation LLP and supports open firmware development for industrial automation and Industrial IoT systems.

The Hexitronics EdgePLC-16 is an indigenous industrial programmable logic controller designed and developed by Hexitronics Automation LLP for automation and Industry 4.0 applications. The controller is built on the powerful ESP32-S3 dual-core processor and provides flexible digital IO control along with industrial communication capabilities.

Key Features

• ESP32-S3 Dual Core Controller
• 16 Digital IO (8 Inputs + 8 Outputs)
• RS485 Modbus RTU Communication
• WiFi Connectivity
• 24V DC Industrial Power Input
• Open Architecture Firmware
• Edge AI Ready System

Technical Specifications

AI Ready Architecture

The EdgePLC-16 is designed with an edge computing architecture capable of integrating AI agents and intelligent control systems in the future. Through its WiFi and RS485 communication interfaces, the controller can communicate with industrial cloud platforms, edge AI engines, and industrial monitoring dashboards.

• Edge computing capable microcontroller
• Future integration with AI control agents
• Cloud connected industrial automation
• Remote firmware updates supported

Industrial Standards

• Modbus RTU Communication Support
• 24V DC Industrial Control System Architecture
• Designed for Industry 4.0 and Industrial IoT Integration
• Watchdog Enabled Embedded Control System
• RS485 Industrial Communication Interface

Applications

• Industrial Machine Automation
• Pump and Motor Control
• Energy Monitoring Systems
• Remote Monitoring
• Smart Agriculture Automation

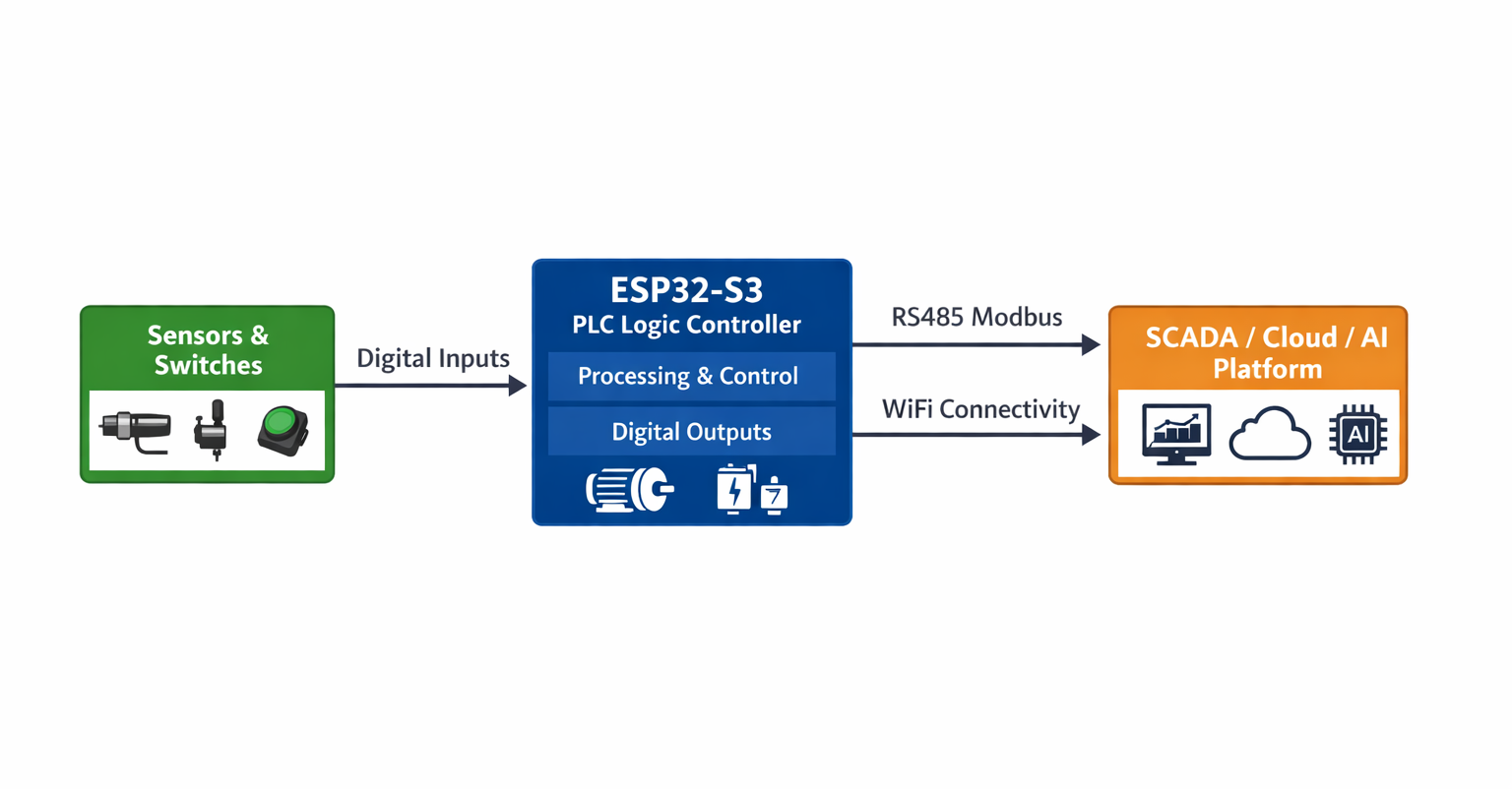

System Architecture

The Hexitronics EdgePLC-16 architecture integrates industrial sensors, control logic, and communication interfaces for Industry 4.0 applications.
